PAS Chassis

Product Code: PAS-CH Categories: , Tag:

$150.00

Out of stock

PLEASE NOTE:

Our online shopping cart is for USA orders Only. Click here for other ordering options

Description

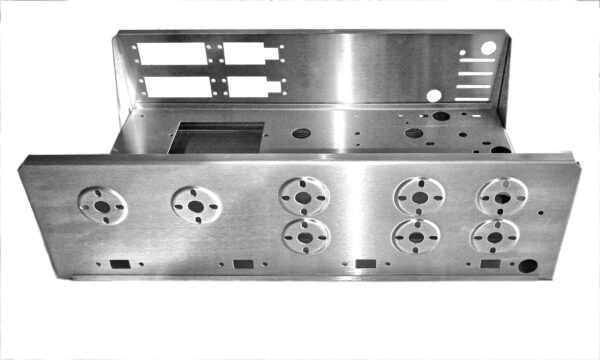

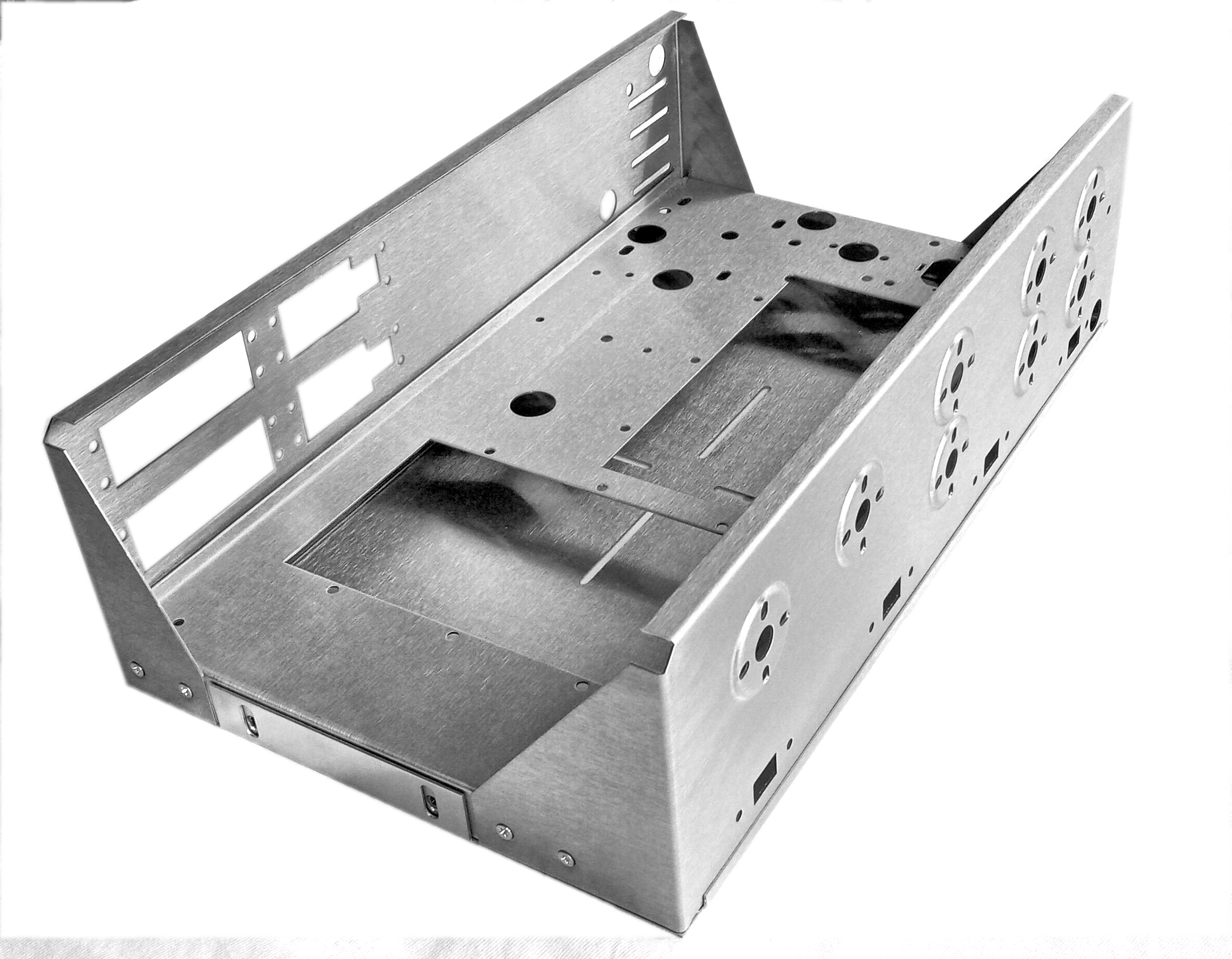

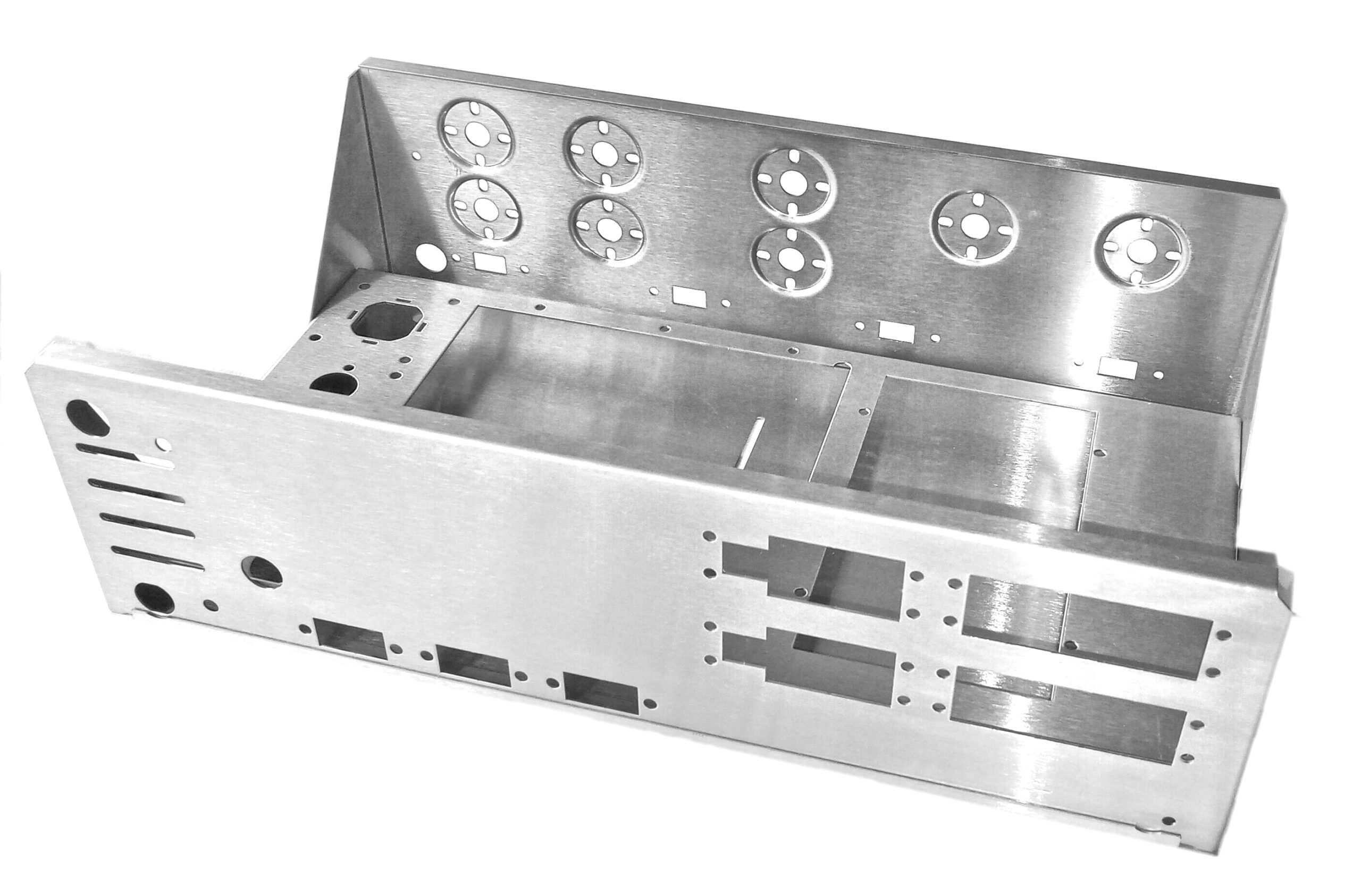

The new Dynakit PAS Chassis – Dimensionally accurate to the original Dyna PAS Series preamp chassis with a re-designed front panel to facilitate both the original and most all modern replacement tone & function controls.

The base panel is pre-punched for exact fit of all of the original circuit boards and components…Plus the added mounting provisions for a Toroidal power transformer (Up to 3.0″ Dia.)…a secondary filament transformer, snap in 3AG fuse holder and a clamp style mount multi-section capacitor.

The rear panel incorporates provisions for (alternate) external mounting of the PA 211 power transformer plus (3) optional 120 volt AC outlets.

The steel chassis has a durable Nickel plated industrial finish and vented bottom cover. The chassis kit includes AC plug outlet covers, plastic hole bushings, power cord grommet and basic panel assembly hardware.

Optional Items: Rubber Feet [BRF-4M], Fuse Holder [FH-3AG-OS],PAS Modern RCA Jack Kit [PAS-RCA-1], PAS Full Function RCA Jack Kit [PAS-RCA-2], AC Snap-in Receptacle
[AC-REC-120V]

FREE… PAS LABEL with the combined purchase of chassis & cover!
