ST-35 KIT (120 VAC)
Use our Order Form (PDF) and just email it back to us at:
PLEASE READ:
The high demand for our amplifier kits has created an unexpected backlog of orders. Unlike other vendors, we do not accept deposits or advance payments. We can however reserve a slot in our production schedule if you send us your amplifier kit order details.
We would require your full contact information plus any options that you wish to include with your kit order. If you prefer, you can simply use our Order Form which you can complete and return to us via email.
Following our receipt of your order details we will confirm pricing, payment options, and estimated delivery. Please do not send credit card (payment) information with your order details. Reserving your order is considered a non-binding agreement.
PLEASE NOTE:
Our online shopping cart is for USA orders Only. Click here for other ordering optionsDescription
Full kit package, less tubes and top vented cover. Kit requires user assembly of PC boards.
Choose either Type (A) Carbon Composition resistors or Type (B) Metal Film resistors.
Includes your choice of three (2) Chassis Finishes:

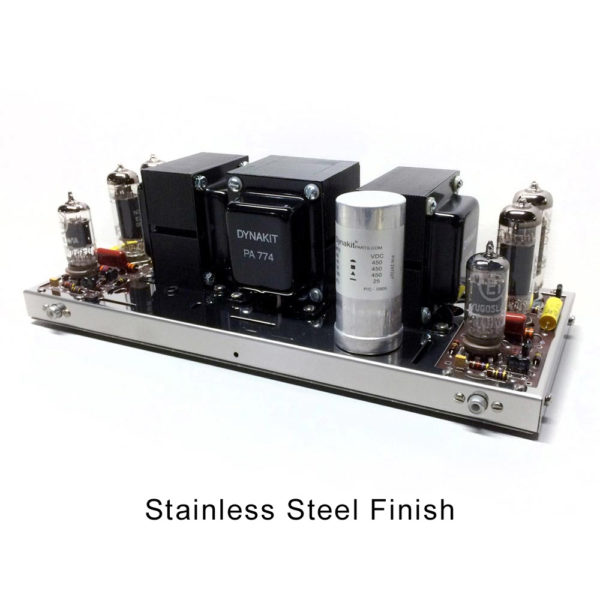

(C) Nickel Plated Steel or (D) Stainless Steel (mirror finished)
Click here for more information about the optional ST35-BCU Bias Upgrade Kit
| CIRCUIT TYPE: | PUSH-PULL DESIGN (STEREO AMP) |
| POWER OUTPUT: | 17.5 WATTS PER CHANNEL |
| TUBE TYPES: | (4) EL84 (6BQ5) OUTPUT Tubes “MATCHED QUAD” (2) 7247 (12DW7) INPUT TUBES |
| INPUT SENSITIVITY: | 1 VOLT FOR 17.5 WATT OUTPUT (PER CHANNEL) |
| INPUT IMPEDANCE: | 500K OHMS |
| OUTPUT IMPEDANCES: | 4 & 8 OHMS |
| NOISE & HUM: | 80 DB BELOW RATED POWER |
| THD: | LESS THAN 1% AT FULL POWER |
| FREQ. RESPONSE: | 20 HZ TO 20K HZ AT FULL POWER + / – 1 DB |
| MIN CHANNEL SEP.: | 80 DB |
| SIZE: | 4″ H X 13″ W X 5 ½” D |
| WEIGHT: | 16 Lbs. |
Latest Review – First Watt SIT3 vs Dynakit ST-35
Click here a review on the Dynakit ST-35
Dynaco ST35 made by Kenny Russell Funtastic Vintronics – YouTube
